Description
| Property | Value |
|---|---|

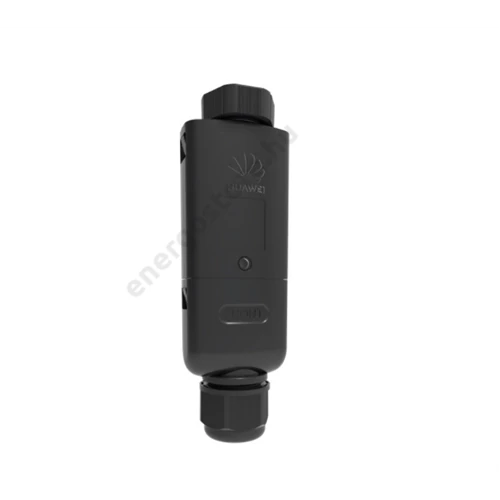

| Type | Huawei Smart Dongle-WLAN + FE (SDongle A-05) |
| Max supported devices | 10 |
| Max connectable inverters | 10 |
| Connection type | USB + 10/100 Mbit/s Ethernet |
| Wireless standards | IEEE 802.11b/g/n |
| Frequency range (Wi-Fi) | 2.412–2.484 GHz |
| Operating modes | STA (Station) + AP (Access Point) modes simultaneously |
| Encryption | WPA / WPA2, TKIP, CCMP, AES |
| Power consumption | Approx. 2.5 W |
| Dimensions (W × H × D) | 146 × 48 × 33 mm |
| Weight | Approx. 90 g |
| Protection rating | IP65 (suitable for outdoor use) |
| Operating temperature | –30 °C to +65 °C |
| Storage temperature | –40 °C to +70 °C |
| Relative humidity | 5 – 95 % RH |
| Max operating altitude | 4,000 m |
| Compatible inverters | SUN2000-2–6KTL-L1, 3–10KTL-M0/M1, 12–20KTL-M0/M2, 30–40KTL-M3 |
| Installation | Plug-and-play via inverter USB port |
| Status indicator LED | Yes |
| Support for multiple inverters | Yes, up to 10 units |
| Product family | Accessories |
| Phases | Accessories |
Manufacturer
Huawei, as a global leader in ICT and network energy solutions, serves over 3 billion people worldwide.
With nearly 194,000 employees, the company operates in more than 170 countries and regions. Over the past decade, Huawei has invested more than USD 70 billion in development and continues to pursue customer-centric innovation, committed to enhancing the customer experience and delivering top-quality products and services.
Huawei offers leading intelligent PV solutions, backed by over 30 years of expertise in digital information technology. As the world’s largest inverter supplier from 2015 to 2021 — for six consecutive years — Huawei is committed to building efficient, smart, safe, reliable, and grid-supporting photovoltaic systems.
