Description

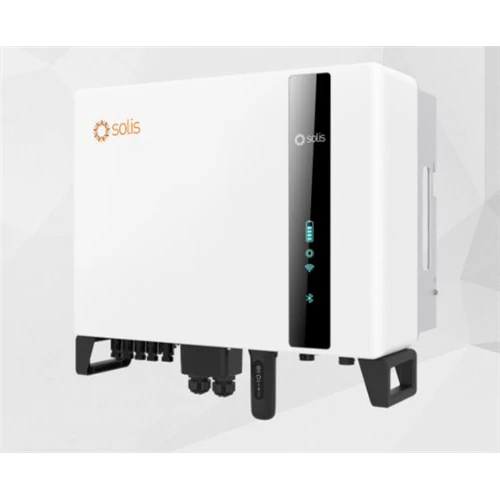

The Solis S6-EH3P5K-H-EU is a 5 kW three-phase hybrid inverter designed for residential energy storage systems. This inverter can connect to solar panels and high-voltage batteries, enabling efficient use and storage of solar energy.
Key features:
-
Multiple MPPT inputs: 3 integrated MPPT (Maximum Power Point Tracking) inputs allow efficient management of solar arrays with different orientations.
-
High input current support: Supports up to 16A maximum input current per MPPT, compatible with modern high-power solar modules.
-
Battery compatibility: Compatible with lithium-ion batteries within a voltage range of 120–600 V, supporting up to 25A maximum charge/discharge current.
-
Fast switching: Automatic UPS (uninterruptible power supply) switching in less than 10 ms ensures continuous power supply during outages.
-
Peak load management: Supports peak shaving functions, contributing to grid stability and energy efficiency.
-
Flexible load management: Supports unbalanced and half-wave loads on both grid and backup ports, increasing system flexibility.
-
Easy installation: Pre-wired battery, meter, and CAN cabling reduce installation time and simplify the process.
These features make the Solis S6-EH3P5K-H-EU hybrid inverter an ideal choice for those seeking a reliable and efficient energy storage solution for residential applications.
| Inverter warranty | 10 years |
| Max. efficiency | 97.9% |
| Munkapontok száma | 3 MPPT |
| Weight | 32.6 kg |
| Phases | 3 phase hybrid |
| Power | 5000 W |
| Inverter type | Asymmetrical hybrid |
| Dimensions | 600 x 500 x 230 mm |
| Max. input voltage | 1000 V |
