Description

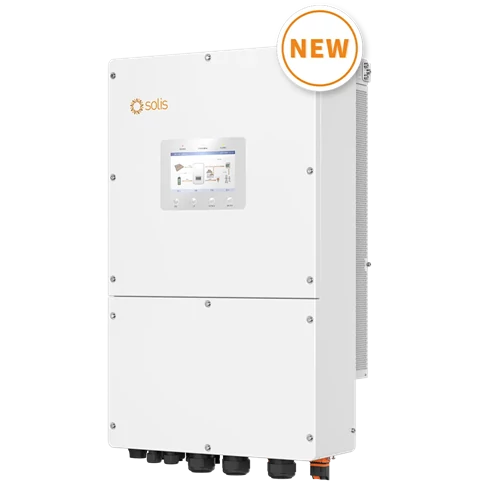

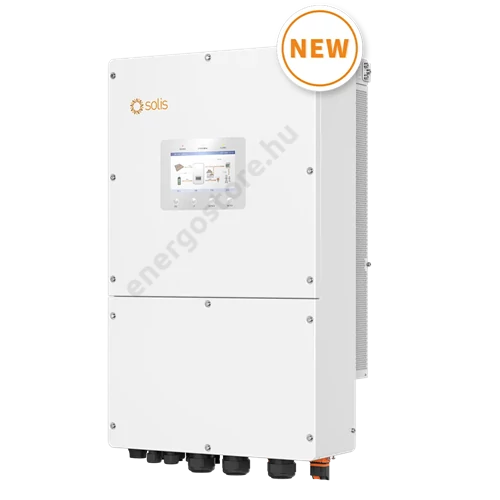

The Solis S6-EH3P50K-H is a 50 kW three-phase hybrid inverter specifically designed for commercial and industrial solar energy storage systems. This high-voltage inverter features two independently controlled battery ports, each supporting a maximum charge/discharge current of 70A, totaling up to 140A, which is exceptional and unique in the entire inverter market. It has four integrated MPPT (Maximum Power Point Tracking) inputs, each supporting up to 20A input current, ensuring maximum power transfer.
The inverter supports parallel operation of up to six units for both grid-tied and off-grid applications, and can handle short-term overloads of up to 1.6 times on the backup port. With a wide battery voltage range, it is compatible with various battery types and offers peak load reduction options in both "self-consumption" and "generator" modes. Furthermore, the inverter supports unbalanced and half-wave loads on both the grid and backup ports, as well as a 200% DC/AC ratio, enabling full utilization of PV charging and providing extended backup time.
The Solis S6-EH3P50K-H offers real-time battery monitoring, remote firmware updates, and battery recovery functions to extend battery lifespan. Additionally, it employs an intelligent redundant fan cooling system to ensure long service life.
These features make the Solis S6-EH3P50K-H an ideal choice for those seeking a reliable and efficient energy storage solution for commercial applications.
Dimensions: 530 x 880 x 290 mm
Weight: 73 kg
| Inverter warranty | 10 years |
| Munkapontok száma | 4 MPPT |
| Phases | 3 phase hybrid |
| Power | 50000 W |
| Inverter type | Asymmetrical hybrid |
