Description

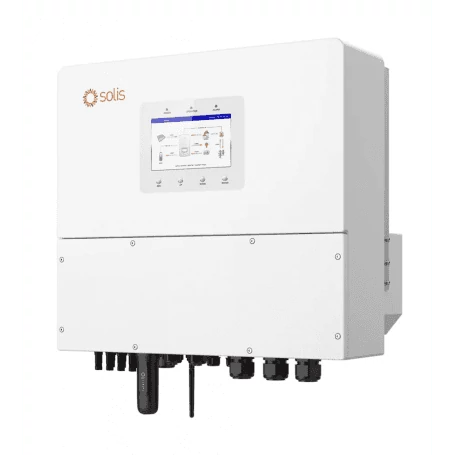

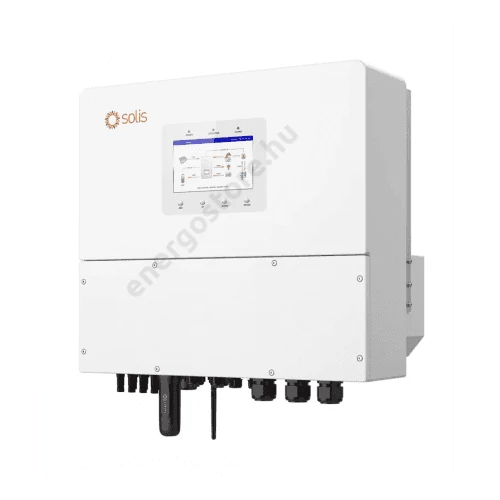

The Solis S6-EH3P20K-H is a 20 kW, three-phase hybrid inverter designed for larger residential, industrial, and commercial energy storage systems. It is well-suited for both grid-connected and off-grid operation, enabling maximum energy independence.
Key features:
-
Multiple MPPT inputs: The 4 MPPT (Maximum Power Point Tracking) design ensures optimal energy production from solar arrays with different orientations.
-
High input current support: Supports up to 20 A input current per MPPT, compatible with high-power solar modules.
-
Battery compatibility: Compatible with lithium-ion batteries in the 120–800 V voltage range, with up to 50 A maximum charge/discharge current.
-
Flexible load management: Can handle unbalanced and half-wave loads on both grid and backup ports.
-
Peak load management: "Self-consumption" and "generator" modes help reduce grid load and optimize energy costs.
-
Generator compatibility: Works with generators to ensure continuous power supply during outages.
-
High efficiency: Up to 98% efficiency guarantees energy-efficient operation.
-
Easy installation and integration: Pre-wired connectors and intuitive setup options speed up installation.
| Inverter warranty | 10 years |
| Munkapontok száma | 4 MPPT |
| Phases | 3 phase hybrid |
| Power | 20000 W |
| Inverter type | Asymmetrical hybrid |
