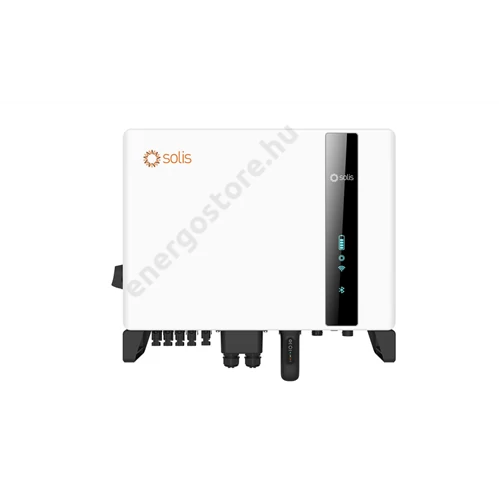

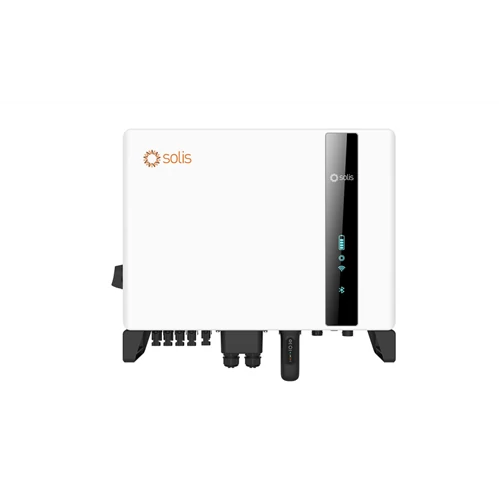

Solis S6 10kW 3Ph Hybrid Inverter, 4MPPT, DC, for HV Batteries

Solis S6 10kW 3Ph Hybrid Inverter, 4MPPT, DC, for HV Batteries

Manufacturer: Solis
Model: S6-EH3P10K-H-EU
Availability: In transit

Solis (Ningbo Ginlong Technologies) was founded in 2005 and is the world’s third-largest manufacturer of solar inverters. The company applies innovative string technology in solutions designed for residential, commercial, and industrial sectors, providing outstanding reliability. With global R&D and manufacturing capacity, it offers region-specific products while supporting sustainable development. Solis products are recognized by numerous financial institutions, ensuring long-term investment returns.

In 2006, they obtained the UK G83 certification, and in 2009, as the first Asian manufacturer, they earned the USA UL1741 certification for their string inverters. In 2015, their inverter was installed at the Eiffel Tower, and by 2021, they ranked among the world’s top 500 new energy companies.

Leapton and BYD battery-compatible hybrid inverter.

Description

Key features:

  • Multiple MPPT inputs: Equipped with 4 MPPT inputs, allowing efficient management of solar arrays with different orientations.

  • High input current support: Supports a maximum input current of 16A per MPPT and 24A short-circuit current.

  • Low start-up voltage: 160V start-up voltage improves system flexibility.

  • High efficiency: Up to 97.5% efficiency ensures energy-efficient operation.

  • Emergency output and backup function: Provides power supply even during outages.

  • Battery support: Compatible with various lithium-ion batteries, with a maximum charge/discharge current of 50A/10kW.

  • Easy installation: Pre-wired battery, meter, and communication connectors enable quick and simple installation.

  • Flexible load management: Supports unbalanced and half-wave loads.

  • Enhanced battery protection: Built-in protection extends battery lifespan.

Inverter warranty 10 years
Max. efficiency 98%
Munkapontok száma 4 MPPT
Weight 32.6 kg
Phases 3 phase hybrid
Power 10000 W
Inverter type Asymmetrical hybrid
Dimensions 600 x 500 x 230 mm
Max. input voltage 1000 V
