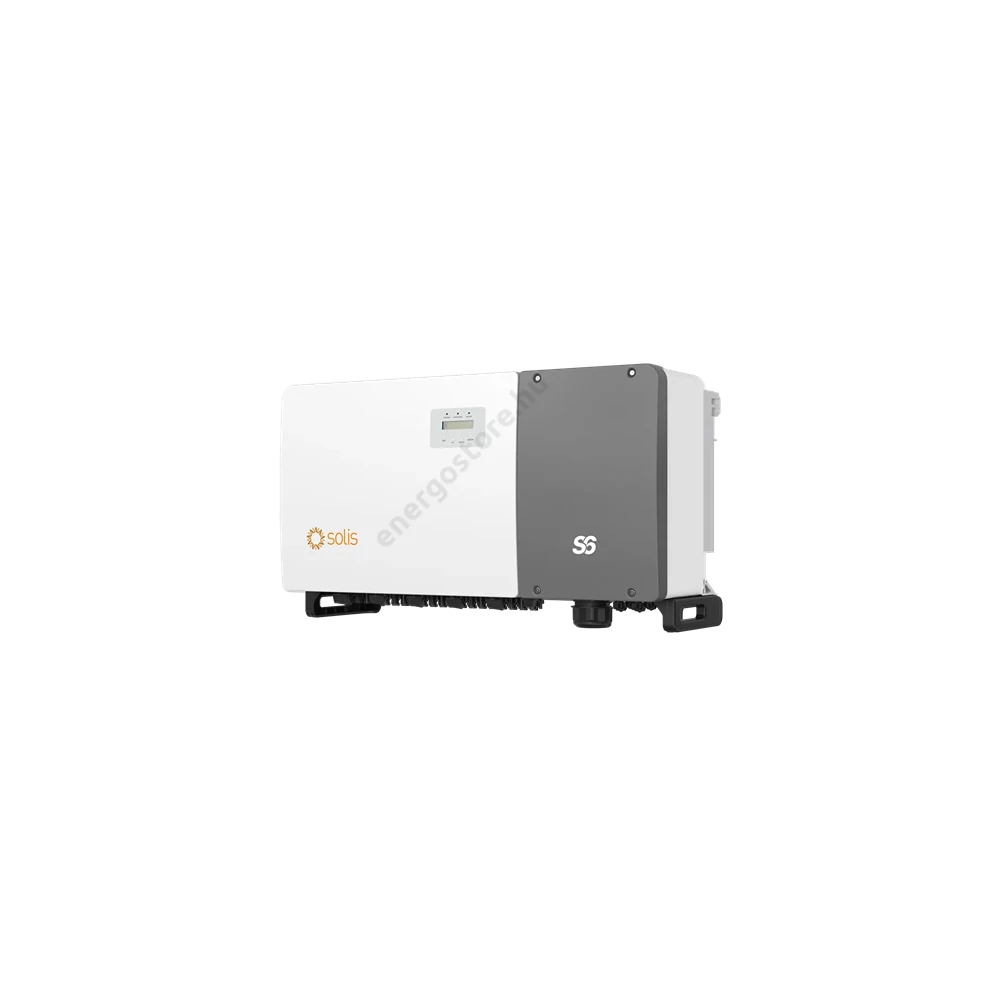

Solis 80kW inverter - 6 MPPT (Solis-80K-5G-PRO)

The Solis-80K-5G-PRO is an 80 kW three-phase grid-tied inverter specifically designed for commercial and industrial-scale solar systems. The device is part of the Solis 5G series and features many advanced functions to enhance efficiency and reliability.

Key Features:

• 6 independent MPPT inputs to optimize solar arrays with different orientations.

• Up to 36 A input current per MPPT, ideal for high-power modules.

• Maximum efficiency: 98.7%, ensuring exceptional energy performance.

• Supports DC/AC oversizing up to 150% for maximum energy yield.

• Nighttime SVG function (reactive power compensation) to improve grid stability.

• AFCI protection (arc fault detection) to prevent fire hazards.

• IP66 protection rating for excellent outdoor suitability.

• I-V curve scanning and string monitoring to optimize performance and quickly detect faults.

• Supported communication interfaces: RS485, Wi-Fi, GPRS, optionally PLC.

Technical Specifications:

• Dimensions: 1065 × 585 × 363 mm

• Weight: 78 kg

• Maximum DC input voltage: 1100 V

• MPPT voltage range: 160–1000 V

• Rated output power: 80 kW

• Maximum AC output power: 88 kW

• Grid voltage: 3/N/PE, 220/380 V

• Grid frequency: 50/60 Hz

The Solis-80K-5G-PRO is an ideal choice for large, professional solar installations where efficiency, reliability, and modern monitoring capabilities are essential.
