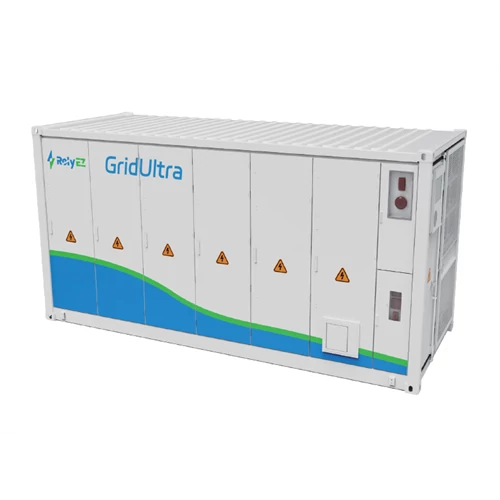

RelyEZ GridUltra, 4.18 MWh
Request for quotation:

RelyEZ GridUltra, 4.18 MWh

Request for quotation:
Manufacturer:
RelyEZ
RelyEZ
Model: RelyEZ_GridU
Availability: Available to order

Huawei, as a global leader in ICT and network energy solutions, serves more than 3 billion people worldwide. With nearly 194,000 employees, they are present in more than 170 countries and regions. With more than $70 billion in development investment over the past decade, Huawei continues to also innovates based on customer needs and is committed to enhancing the customer experience and providing maximum quality.

Huawei offers leading smart PV solutions with more than 30 years of experience in digital information technology. As the world's largest inverter supplier for six consecutive years between 2015 and 2021, Huawei is committed to building efficient, intelligent, safe, reliable and grid-supporting smart photovoltaic systems.

Description

Műszaki adatok

  • Akkumulátor típusa: LFP prizmatikus cellák (52 cella/modul)
  • IP védettség:
    • Modul: IP67
    • Konténer: IP55
  • Hűtés: Folyadékhűtés
  • Tűzvédelem: Intelligens rendszer többpontos érzékeléssel

Elektromos jellemzők

  • Névleges feszültség: DC 1331.2V
  • Feszültségtartomány: DC 1164.8V - 1497.6V
  • Töltési áram: Max 1000 A
  • Max. kisütési áram: 2411 A
  • Névleges kisütési teljesítmény:
    • 4.18MWh: 1045 kW
    • 5.016MWh: 2500 kW
  • Kerekes hatásfok (Round Trip Efficiency): 93%

Fizikai paraméterek

  • Méretek (L x W x H): 6058 x 2438 x 2896 mm
  • Súly:
    • 4.18MWh: ~36.5 tonna
    • 5.016MWh: ~42 tonna

Üzemeltetési feltételek

  • Működési hőmérséklet: -20°C és 45°C között
  • Tárolási hőmérséklet: -30°C és 50°C között
  • Alkalmazási magasság: ≤2000 m (≤3000 m csökkentett teljesítménnyel)

Tanúsítványok

  • IEC62619, UL1973, UL9540A, IEC60730-1, UN38.3, IEC 62477-1, EN IEC 61000-6-2/4 stb.

Garancia

  • Alapértelmezett: 5 év
  • Kiterjesztett: 15 év (MunichRe biztosítással)
Dimensions 6058 x 2438 x2896 mm
Weight 36500 kg
