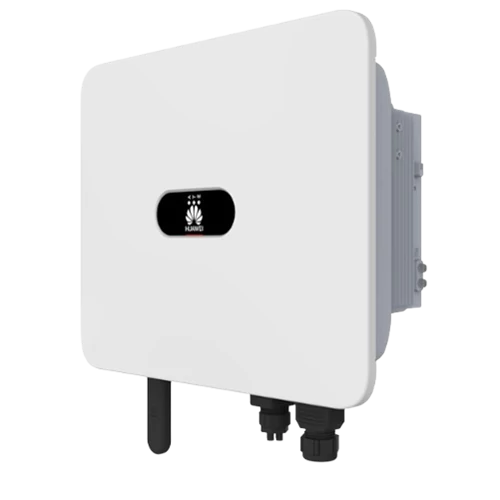

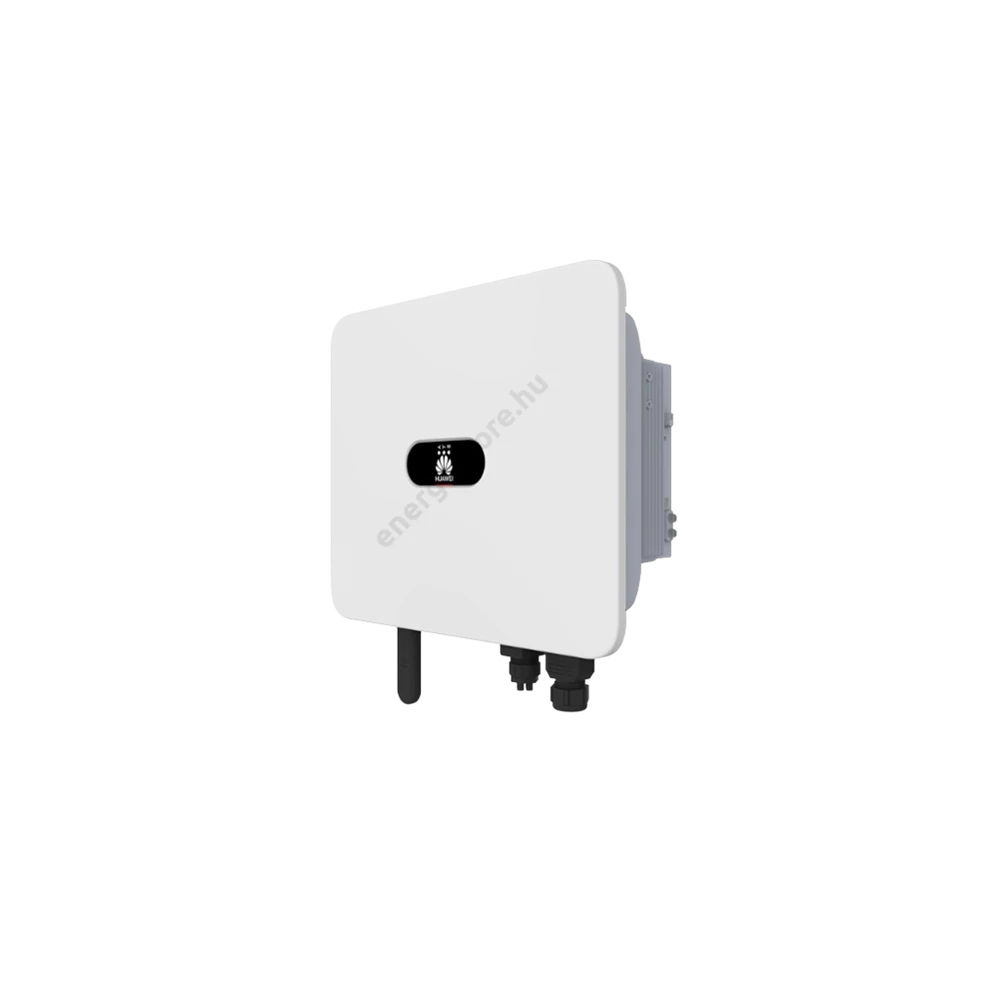

![Huawei SUN 2000-20K-MB0 [Hybrid]](https://energostore.cdn.shoprenter.hu/custom/energostore/image/cache/w1000h1000wt1q100/product/cHJvZHVjdC1wcm9kdWN0X2lkPTI3NDg_1.jpg.webp?lastmod=1755177025.1732117303 "Huawei SUN 2000-20K-MB0 [Hybrid]")
Attached documents
Huge wholesale stock
Wide range of products | Products available from stock
Description
| Parameter | Value / Description |
|---|---|
| Rated AC Power | 20 kW |
| Max. DC Input Voltage | 1100 V |
| MPPT Voltage Range | 200–1000 V |
| Number of MPPTs / Strings | 4 MPPT / 8 strings |
| Max. DC Input Current (per MPPT) | 18 A |
| Rated AC Voltage | 400 V (3-phase) |
| Max. Output Current | 29 A |
| Max. Efficiency | 98.5% |
| Supported Battery Type | Lithium-ion (compatible with Huawei LUNA2000) |
| Battery Voltage Range | 600–980 V |
| Energy Storage Functions | Charge/discharge, backup mode |
| Communication | RS485, WLAN, Ethernet, 4G (optional) |
| Protection Class | IP66 |
| Cooling Method | Natural cooling / fan-assisted |
| Dimensions (W × H × D) | approx. 640 × 530 × 270 mm |
| Weight | approx. 30–32 kg |
| Product family | MB0 - 3 phase |
| Phases | 3 phase hybrid |
| Power | 20000 W |
Manufacturer
Huawei, as a global leader in ICT and network energy solutions, serves over 3 billion people worldwide.
With nearly 194,000 employees, the company operates in more than 170 countries and regions. Over the past decade, Huawei has invested more than USD 70 billion in development and continues to pursue customer-centric innovation, committed to enhancing the customer experience and delivering top-quality products and services.
Huawei offers leading intelligent PV solutions, backed by over 30 years of expertise in digital information technology. As the world’s largest inverter supplier from 2015 to 2021 — for six consecutive years — Huawei is committed to building efficient, smart, safe, reliable, and grid-supporting photovoltaic systems.
