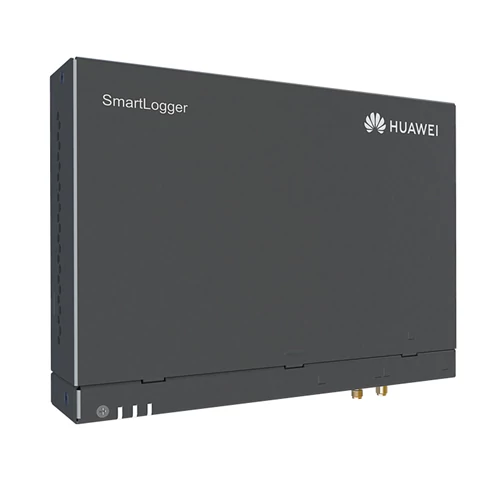

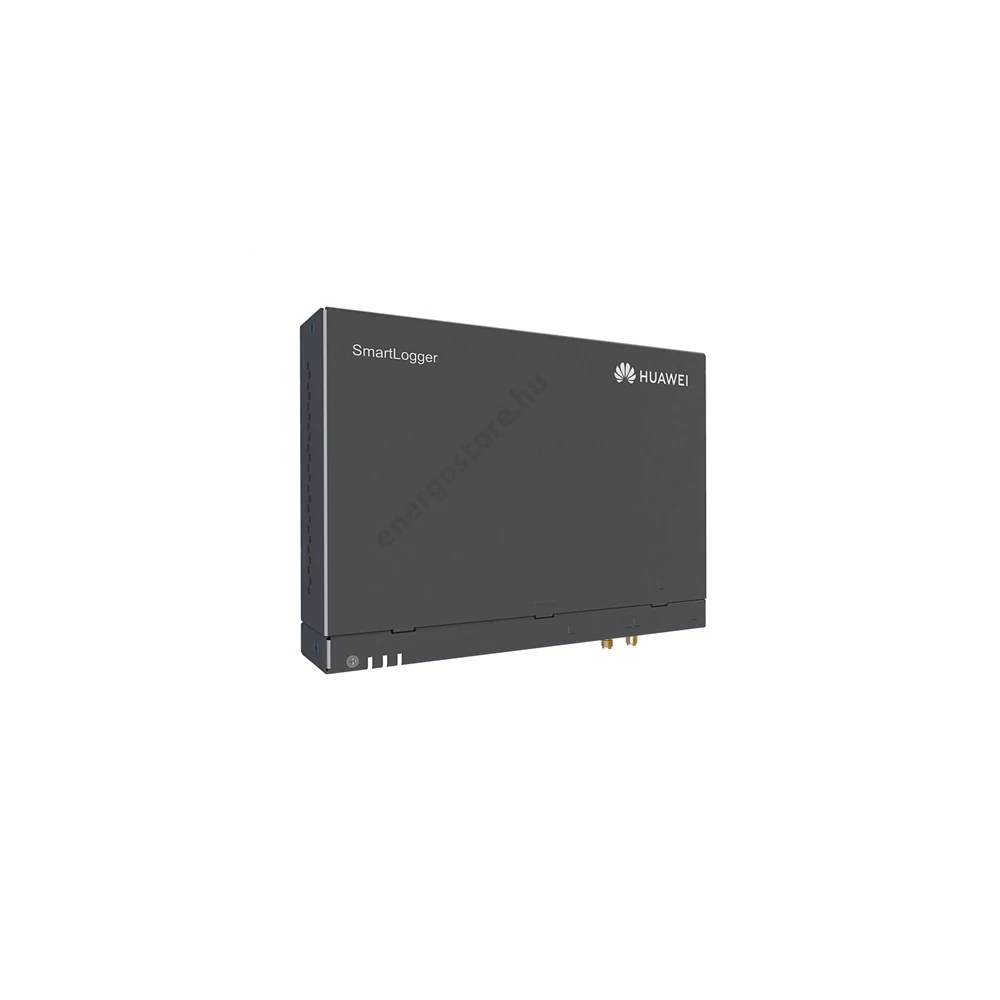

Huawei Smart Logger 3000A01 (PLC nélkül)

Manufacturer:	Huawei
Model:	HWSLOG
Availability:	In stock

Description

Property	Value
Maximum number of connectable inverters	80 inverters
Communication interfaces	3 × RS485, 4 × Ethernet (RJ45), USB
Power supply	DC 24 V / 1.25 A
Power consumption	≤ 15 W
Dimensions (W × H × D)	225 × 160 × 44 mm
Weight	1.5 kg
Mounting	DIN rail or wall mount
IP protection rating	IP20
Operating temperature	–30 °C to +60 °C
Relative humidity	5% – 95% (non-condensing)
Maximum operating altitude	4000 m
Data logging and recording	Built-in memory + supported SD card
Supported communication protocols	Modbus RTU/TCP, IEC104, SNMP
Display	LED status indicators
Remote monitoring	LAN / WLAN / optional 4G / SFP (expandable)

Product family	Logger
Phases	Accessories
