Description
| Property | Value |
|---|---|

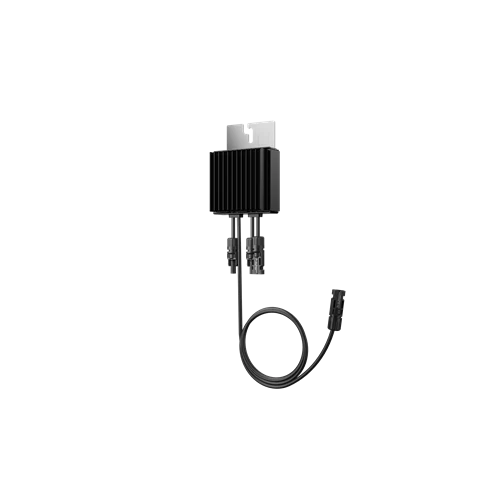

| Model | MERC‑1100W‑P (short cable) |
| Rated DC input power | 1100 W |
| Maximum input voltage | 125 V |
| MPPT operating voltage range | 12.5 V – 105 V |
| Maximum short-circuit current (Isc) | 20 A |
| Maximum efficiency | 99.5% |
| Weighted efficiency | 99.0% |
| Maximum output voltage | 80 V |
| Maximum output current | 22 A |
| Bypass function | Yes |
| Safe shutdown voltage | ~1 V |
| Input connector | Staubli MC4 |
| Input cable length | 0.1 m |
| Output cable length | +0.1 m / –5.1 m |
| Dimensions (W × H × D) | 149 × 104 × 48 mm |
| Weight (with cables) | 1.0 kg |
| IP protection rating | IP68 |
| Operating temperature range | –40 °C – +85 °C |
| Relative humidity | 0% – 100% RH |
| Electrical protection | Class II (according to IEC 62109-1) |
| RoHS compliance | Yes |
| Product family | Optimizer |
Manufacturer
Huawei, as a global leader in ICT and network energy solutions, serves over 3 billion people worldwide.
With nearly 194,000 employees, the company operates in more than 170 countries and regions. Over the past decade, Huawei has invested more than USD 70 billion in development and continues to pursue customer-centric innovation, committed to enhancing the customer experience and delivering top-quality products and services.
Huawei offers leading intelligent PV solutions, backed by over 30 years of expertise in digital information technology. As the world’s largest inverter supplier from 2015 to 2021 — for six consecutive years — Huawei is committed to building efficient, smart, safe, reliable, and grid-supporting photovoltaic systems.
