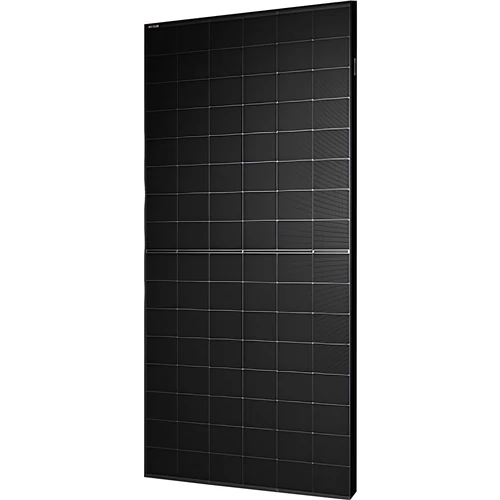

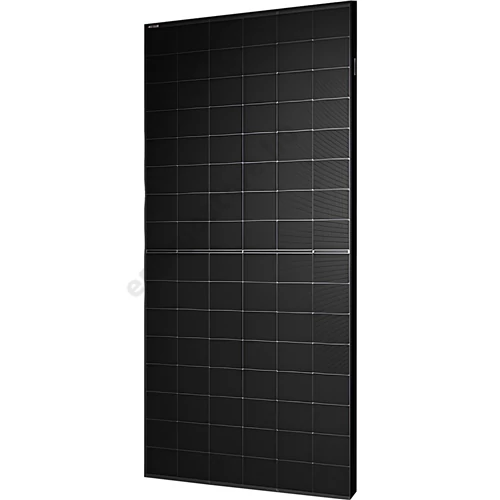

TWMNH-48HD-450W Technical Specifications
Electrical Characteristics (under STC):
-
Maximum Power (Pmax): 450 W
-
Operating Voltage (Vmp): 43.15 V
-
Operating Current (Imp): 10.43 A
-
Open-Circuit Voltage (Voc): 51.30 V
-
Short-Circuit Current (Isc): 11.28 A
-
Module Efficiency: 22.5%
-
Power Tolerance: 0 ~ +5 W
Temperature Coefficients:
-
Temperature Coefficient of Pmax: -0.30 %/°C
-
Temperature Coefficient of Voc: -0.24 %/°C
-
Temperature Coefficient of Isc: +0.05 %/°C
Operating Conditions:
-
Maximum System Voltage: 1500 V DC (IEC/UL)
-
Operating Temperature: -40 °C ~ +85 °C
-
Maximum Fuse Rating: 25 A
-
Maximum Mechanical Load: 5400 Pa (front) / 2400 Pa (rear)
Dimensions and Weight:
-
Dimensions: 1762 × 1134 × 30 mm
-
Weight: 20.5 kg
-
Cell Type: N-type, 144 half-cells (M10)
-
Cable Length: 350 mm
-
Connector: MC4 compatible
-
Front Glass: 3.2 mm tempered, low-iron glass with AR coating
-
Backsheet: Black (Black F)
-
Frame: Anodized aluminum, black
Certifications:
-
IEC 61215 / IEC 61730
-
UL 61730
-
ISO 9001, ISO 14001, ISO 45001
-
CEC, CE, INMETRO, MCS, etc.
Power | 450 Wp |
Number of modules per pallet | 36 db |
