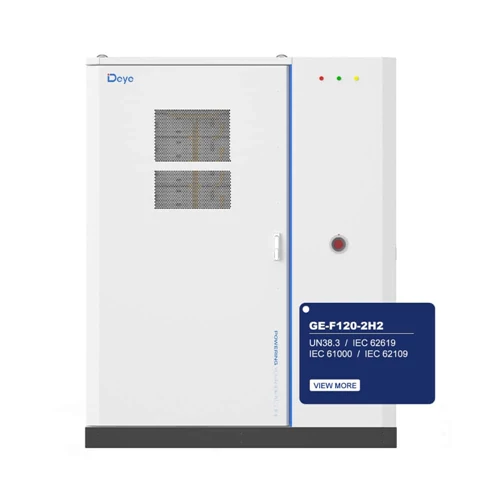

Deye GE-F120-2H2

Deye GE-F120-2H2

Manufacturer: Deye
Model: GE-F120-2H2
Availability: Available to order

Huawei, as a global leader in ICT and network energy solutions, serves more than 3 billion people worldwide. With nearly 194,000 employees, they are present in more than 170 countries and regions. With more than $70 billion in development investment over the past decade, Huawei continues to also innovates based on customer needs and is committed to enhancing the customer experience and providing maximum quality.

Huawei offers leading smart PV solutions with more than 30 years of experience in digital information technology. As the world's largest inverter supplier for six consecutive years between 2015 and 2021, Huawei is committed to building efficient, intelligent, safe, reliable and grid-supporting smart photovoltaic systems.

Description

Főbb jellemzők:

  • Névleges teljesítmény: 50 000 W

  • Energiatárolási kapacitás: 122,8 kWh (max. 120 kWh konfigurációval)

  • Bővíthetőség: akár 10 rendszer párhuzamosan

  • Működés: on-grid, off-grid, backup

  • Akkumulátor típus: Lítium-vasfoszfát (LFP), ≥6000 ciklus

  • Hatásfok (töltés/kisütés): max. 91%

  • Csúcsteljesítmény: 1,5× névleges teljesítmény, 10 mp

  • Tűzbiztonság: integrált gázérzékelő, füstérzékelő, automata oltórendszer

  • Garancia: 10 év


Műszaki adatok:

Rendszer

  • Névleges AC kimenet: 50 kW

  • Kimeneti feszültség/frekvencia: 3L/N/PE, 220/380V vagy 230/400V, 50/60Hz

  • AC kimeneti áram: 75,8 A

  • IP-védelem: IP55

  • Méret: 1764 × 1050 × 2250 mm

  • Tömeg: kb. 1980 kg

Inverter

  • Max. PV bemeneti teljesítmény: 65 000 W

  • PV bemeneti áram: 4 × 36 A

  • MPP-tartomány: 150 – 850 V

  • MPPT hatásfok: 99,9%

  • Inverter hatásfok: 97,6%

  • MPPT csatornák: 4

  • Kijelző: LCD

  • Kommunikáció: CAN, RS485, WiFi, Ethernet

Akkumulátor

  • Moduláris akkumulátor: 5,12 kWh / 44 kg / 51,2 V

  • BMS kommunikáció: CAN

  • Töltési hőmérséklet: 0–55 °C

  • Kisütési hőmérséklet: -20–55 °C

  • Élettartam: ≥6000 ciklus (0,5C/0,5C)

  • Tanúsítványok: UN38.3, IEC62619, IEC61000


A GE-F120-2H2 a modern ipari és intézményi energiatárolás új mércéje – egy készülékben minden, amire egy megbízható, bővíthető és okos rendszerhez szükség lehet. Ha komoly teljesítményt, komoly biztonságot és valódi jövőállóságot keresel – ez a rendszer neked készült.

Battery cells LiFePO4
Warranty 10 év
IP protection IP55
Dimensions 1780 x 1056 x 2235 mm
Weight 2090 kg
Kapacitás 120
